Description

Technical Specifications

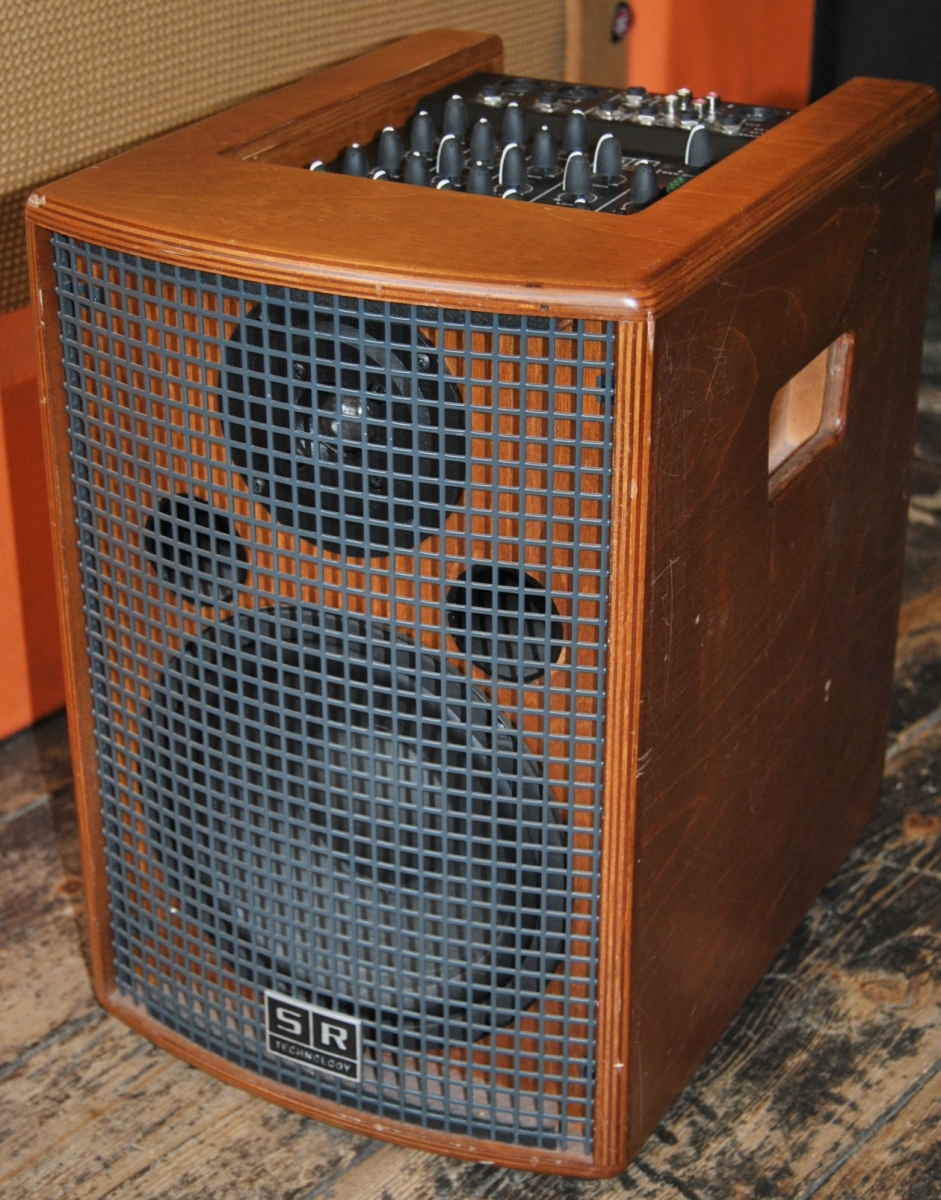

JAM 150 PLUS
Box Two-way bass reflex
Frequency response 40 Hz- 20 kHz
Sensitivity (1W-1m) 93 db
SPL max 115 db
Crossover Electronic –24 db/octave
Woofer 8”
Horn compression tweeter
Construction Plywood
System – Format 2-way Bi-amp
Max Power out LOW 120W RMS, 240W peak
HIGH 30W RMS, 60W peak
Weight Kg 13 (29 lbs)
Dimensions (WxDxH) 28x37x41 cm (11x14,5x16 inch)

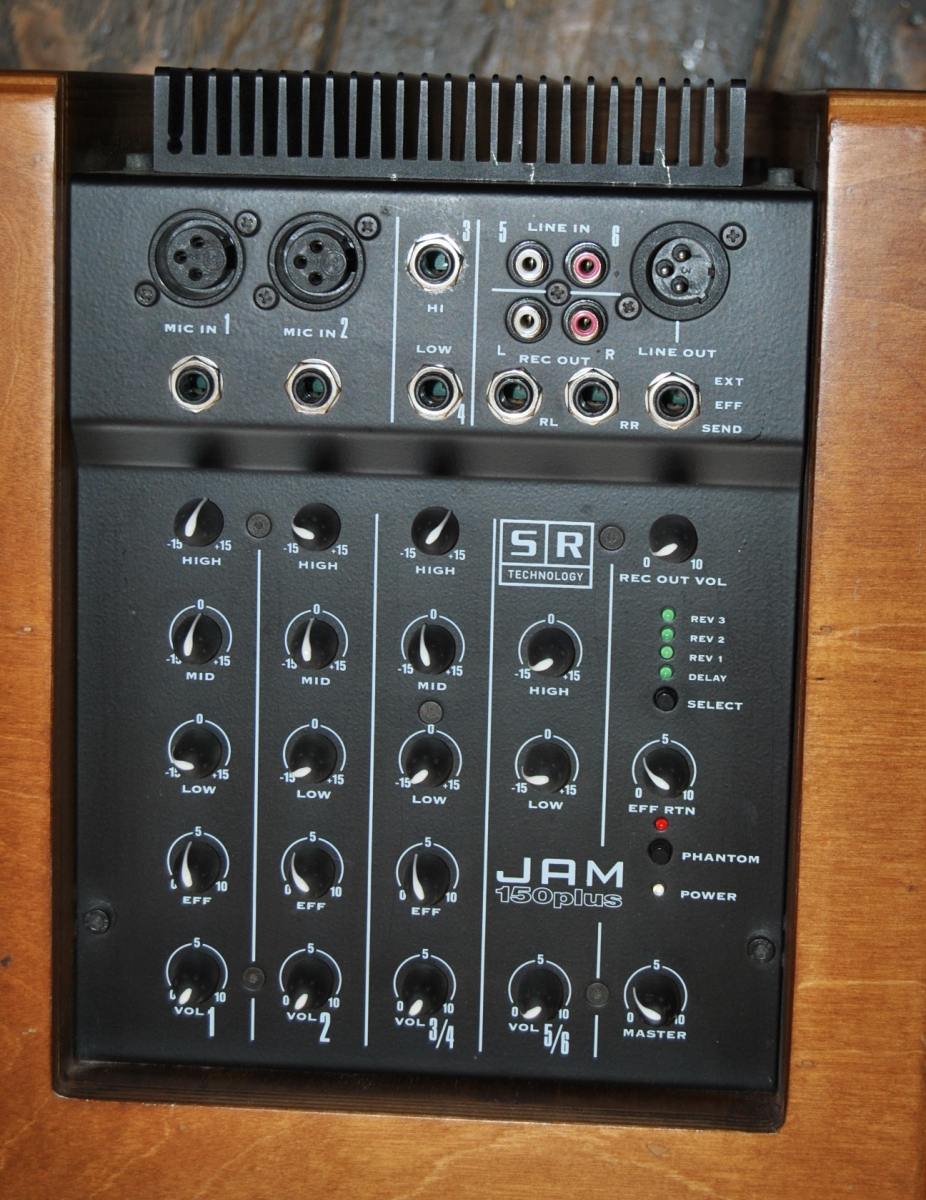

Mixer inputs: MIC 1-2 : XLR - Jack 6,3 mm
LINE IN 3-4 : Jack 6,3 mm
LINE IN 5-6 RCA
Mixer outputs: REC OUT RCA
LINE OUT XLR
Controls: MIC 1-2 : High, Mid, Low, Eff, Vol.
LINE IN 3-4 : High, Mid, Low, Eff, Vol.
LINE IN 5-6 : High, Low, Vol
REC OUT : Vol.
EFF RTN : Vol.
MASTER : Vol.
EFF SEL: Switch
Effect: 1 Delay, 3 Reverbs ( by Alesis)
Send & Return External Effect
